Know every gallon.
In real time.
Cloud-based fuel management platforms, remote tank-level monitoring, fuel quality sensing (level, temperature, water presence), multi-user consumption tracking, and leak detection for double-wall tanks.

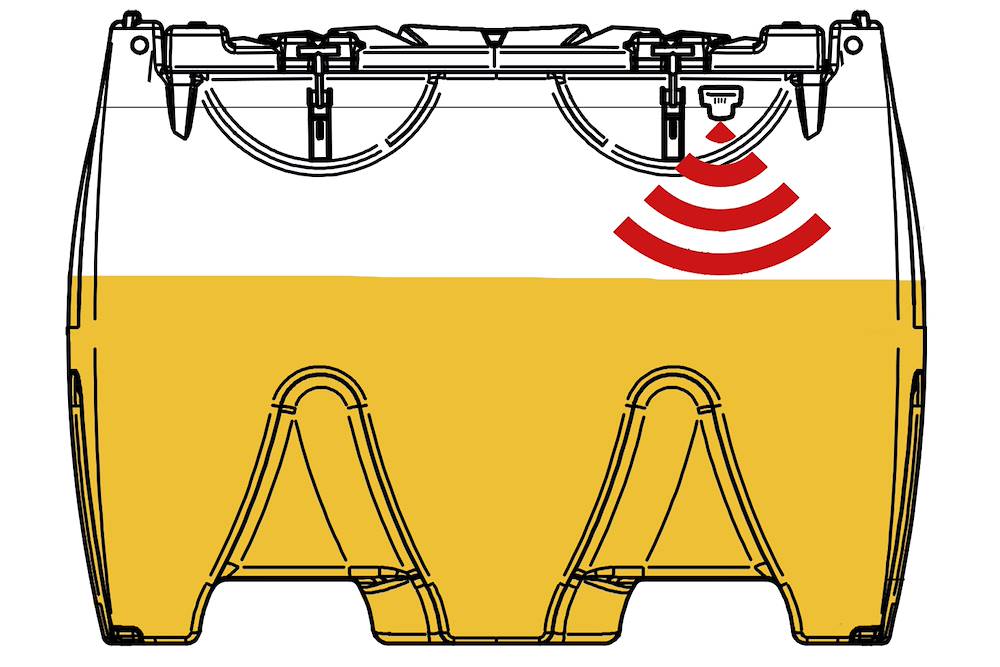

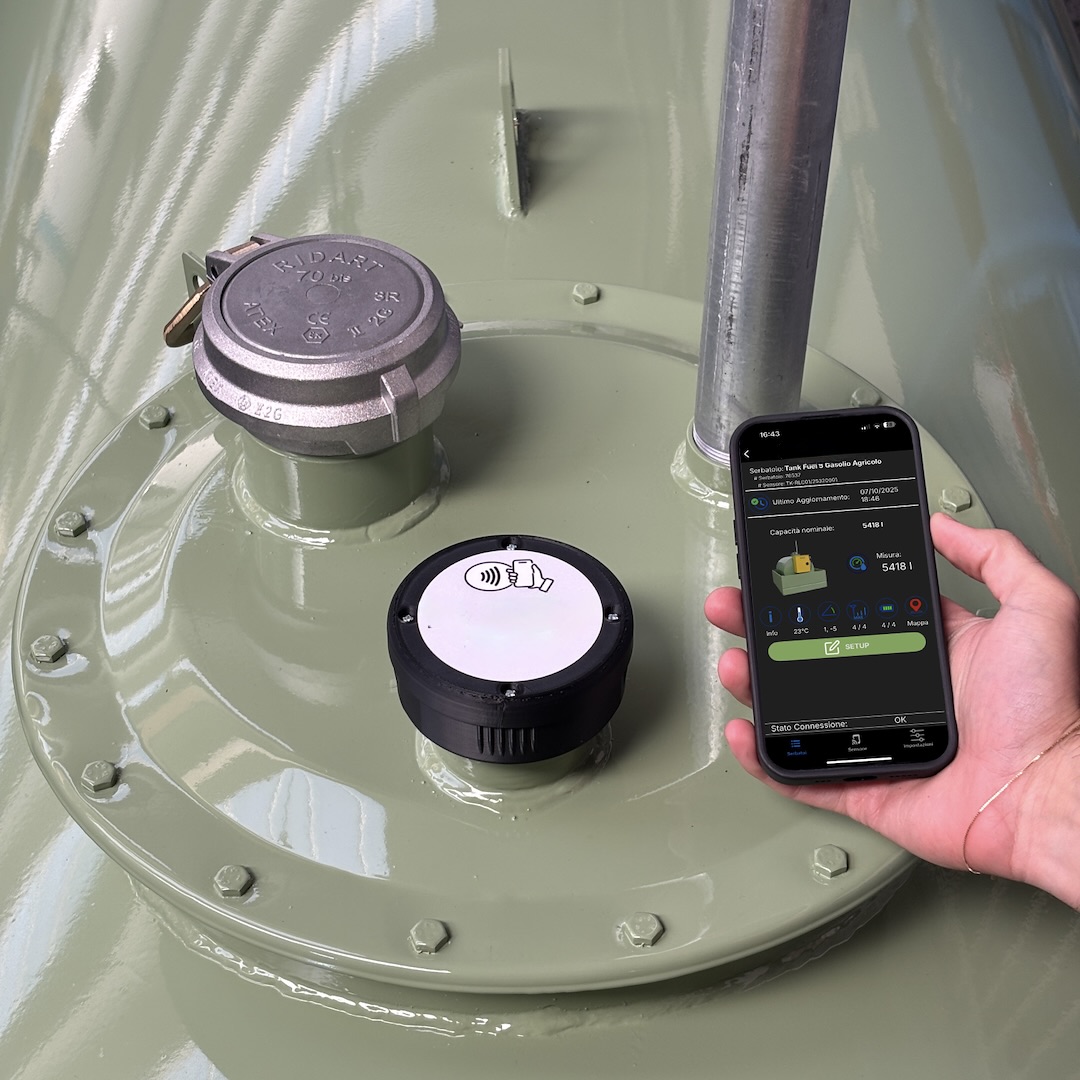

- Wireless level sensing
- Live consumption data
- Driver & vehicle ID
- Audit-ready reporting
A smarter solution for fuel monitoring and accountability.
Fuel monitoring and management platforms give operators live visibility into every tank, dispenser, and user in the network. A 7-inch capacitive control panel at the tank reads levels, temperature, and water presence in real time and pushes every transaction to a secure cloud account — with no subscription fees and no per-user licensing.
The cloud platform aggregates consumption by driver, vehicle, depot, job site, or cost center, synchronizes setup changes back to the panel every five minutes, and integrates with ERP, SCADA, and logistics systems by API.
- Real-time level, temperature, and water-in-fuel readings at every tank
- Cloud dashboard and mobile app with no subscription or per-user fees
- Dashboard and panel synchronize automatically every five minutes
- Driver and vehicle TAGs with limits by volume, time slot, depot, or product
- Odometer and hour-meter capture with previous-value validation
- Excel reporting filtered by tank, product, driver, vehicle, or period
- SMS and email alerts for abnormal drops, refills, water, and reserve levels
- Remote firmware updates over the air, no site visit required
Fuel Monitoring & Management in the field.
Monitoring hardware and software track tank levels, deliveries, and withdrawals across single sites or entire fleets.
Data is available on-site and remotely with exportable reporting.

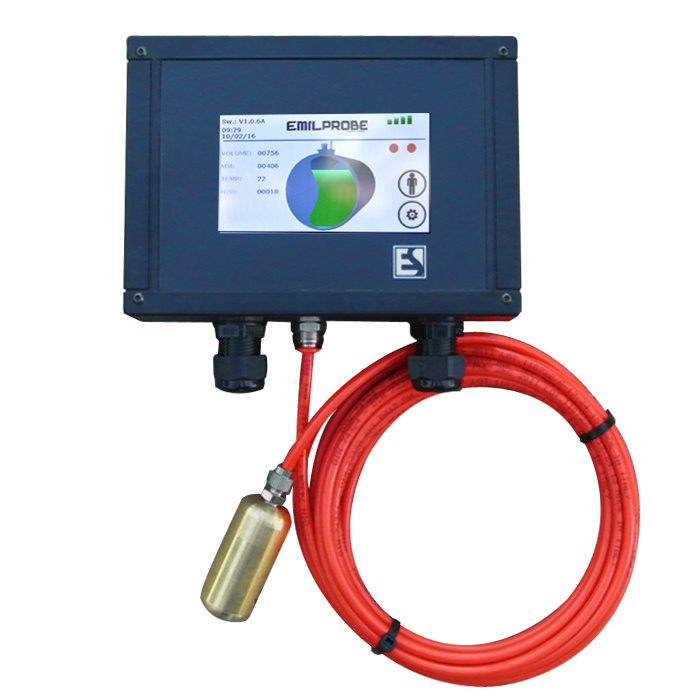

- Control Panel
- 7" capacitive touchscreen, 1024x600, 3.2 mm glass
- Operating Temperature
- -20°F to +122°F ambient rating
- Simultaneous Dispensing
- Up to 6 flow meters displayed at once
- Expandability
- Up to 3 expansion boards, 9 pulsers, 18 probes
- Sensing
- Magnetostrictive, hydrostatic, radar, ultrasonic probes
- Connectivity
- LAN, native Wi-Fi, 4G SIM, mobile hotspot fallback
- Localization
- Integrated GPS with external antenna option
- Backup
- Removable SD card, UPS battery, I/O totalizer memory
- Access Control
- Physical and virtual TAGs, PIN, mobile authorization
- Integration
- REST API, SCADA, ERP, logistics systems
- Reporting
- Excel export, filtered reports, scheduled alerts
- Security
- HTTPS/SSL, role-based access, non-deletable audit log
- Leak Detection
- Interstitial monitoring for double-wall tanks
One connected system: panel, cloud, and mobile app.
The tank-side control panel, the web dashboard, and the mobile app share one data set. Every dispensing, delivery, and alarm is recorded once and available everywhere, on site or from the office.
Ultra-resistant 7" capacitive display handles up to six simultaneous dispensings with instant TAG authentication, syncing to the dashboard every five minutes.
LAN, Wi-Fi, and 4G run together on a priority order, with GPS localization and SMS or email alerts even where no SIM is fitted.
Removable SD backup, UPS battery, and I/O totalizer memory protect data through power loss; manual and off-site refuelings can be entered later.
Up to three expansion boards drive nine pulsers and eighteen probes, with several dispensers per tank or complex multi-tank layouts.

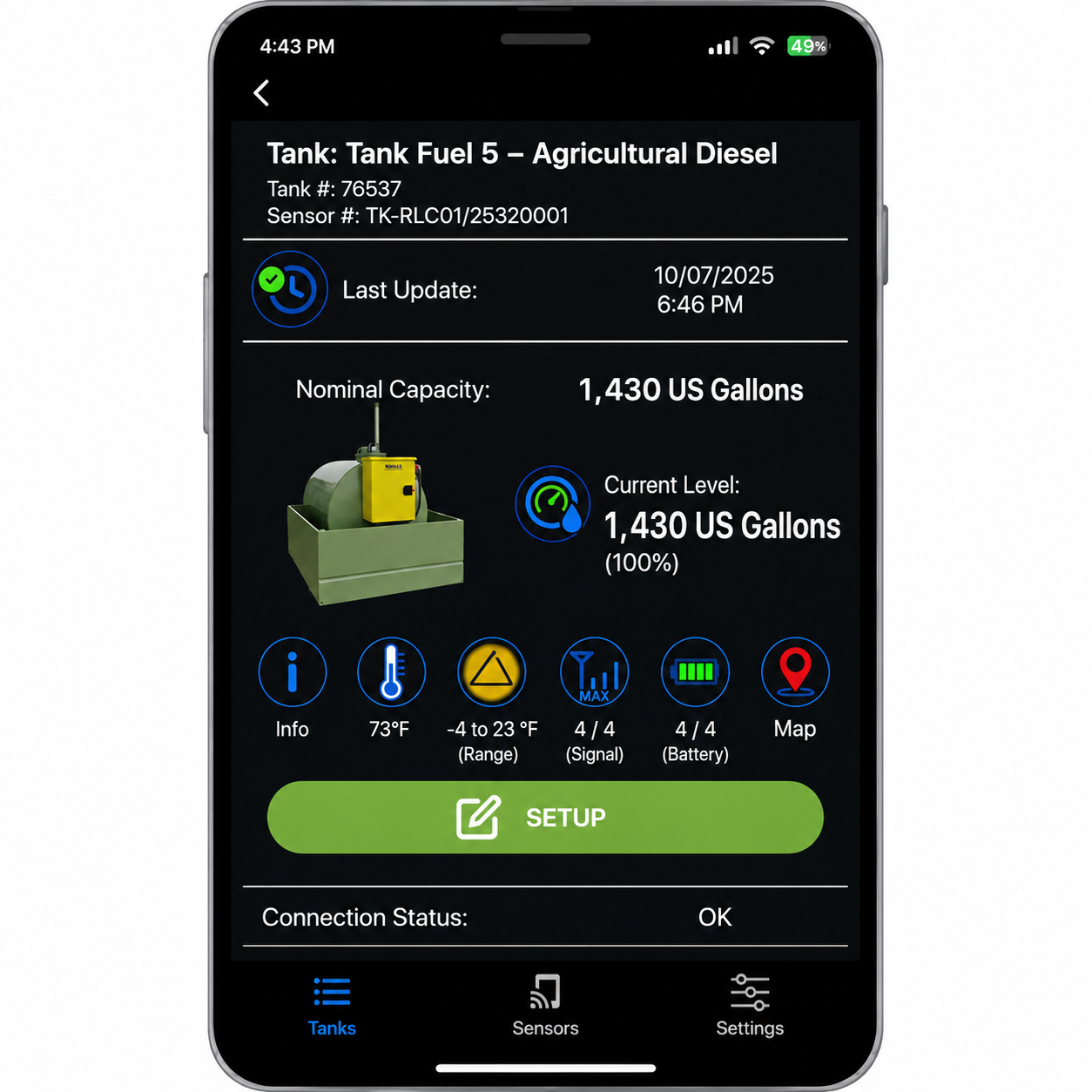

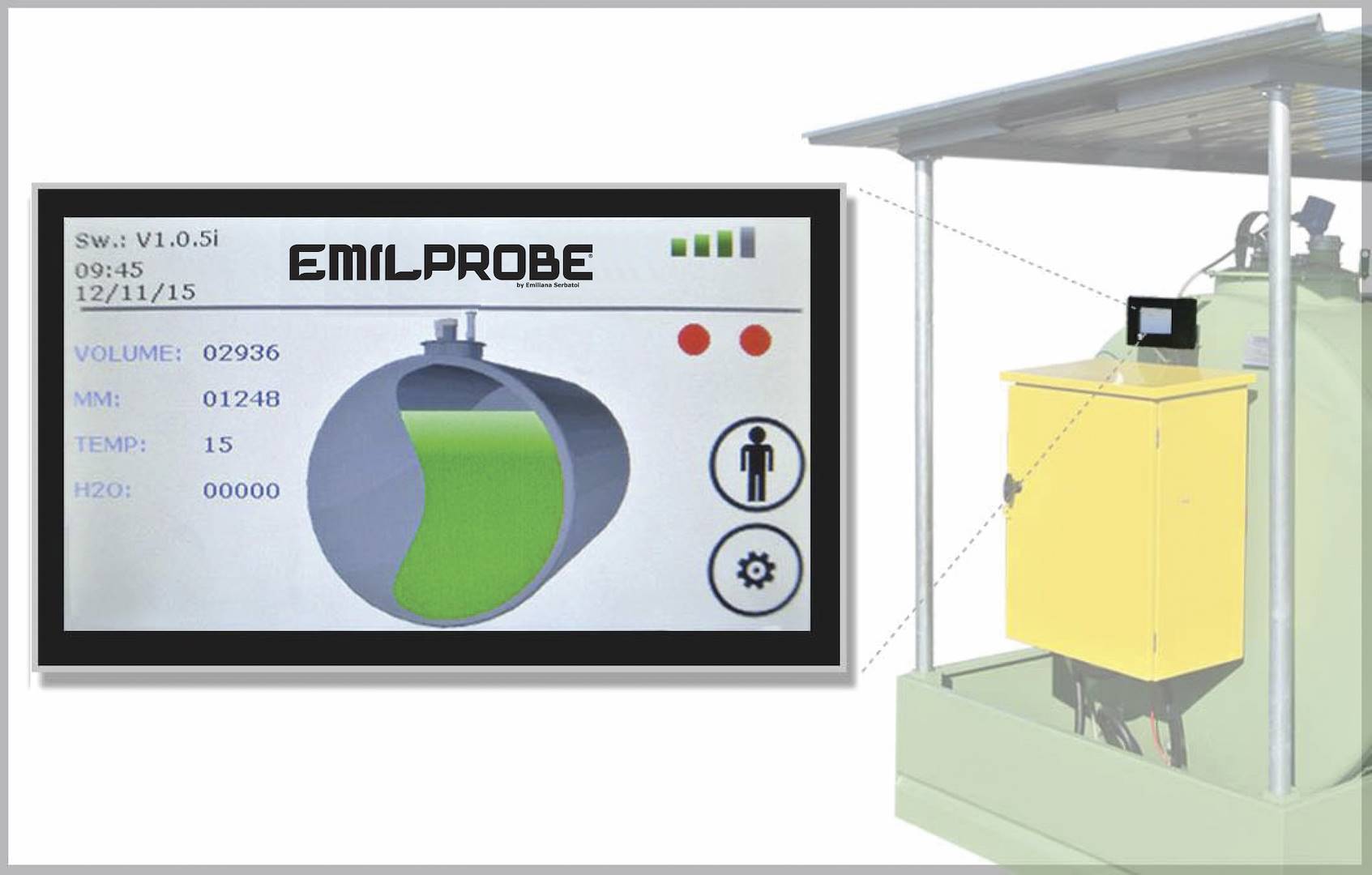

Continuous level, volume, temperature, and water-in-fuel readings with alerts on abnormal drops, refills detected, and reserve thresholds.

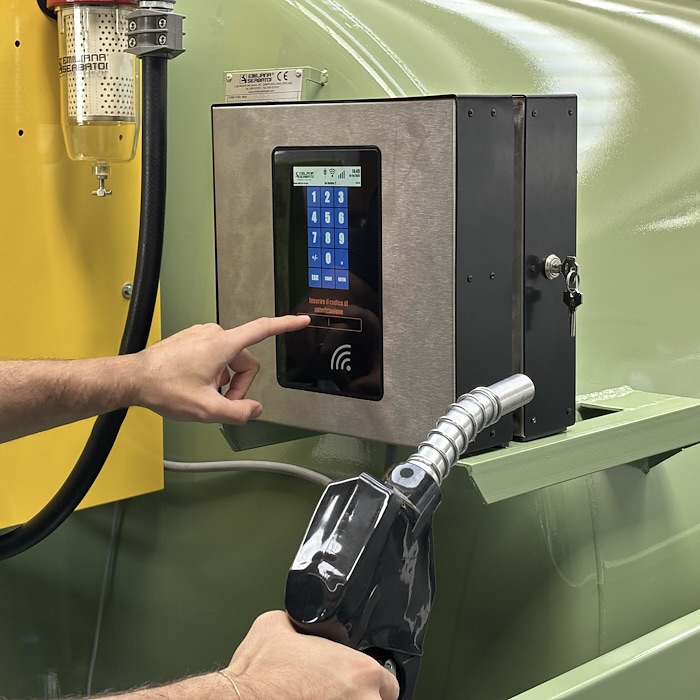

Physical and virtual TAGs control panel access and tie every withdrawal to a driver and vehicle, with limits by time, product, depot, or job order.
Setup changes, tank measurement tables, and panel firmware synchronize from the cloud over the air, removing the need for site visits.
Flexible Excel reporting with advanced filters, cost-center allocation, and external refueling integration for total consumption analysis.
Every gallon tied to a driver, a vehicle, and a job.
- Physical TAGs (token or wristband) plus virtual TAGs enabled or disabled remotely
- TAGs written from a PC application or an NFC-capable mobile phone
- Withdrawal limits per operation, per day, week or month, and by time slot
- Restrictions by depot, tank, and individual dispenser
- Dual-product TAGs — for example diesel and DEF — blocking unauthorized products
- Vehicle tracking by mileage, engine hours, or both, with previous-value validation
- Automatic maintenance notifications for drivers and vehicles, marked read or completed
Audit-ready data, protected end to end.
- Native Excel export straight from the web portal
- Filter by tank, dispenser, product, driver, vehicle, period, or totalizer
- Cost-center management assigning each dispensing to a job order or site
- Off-site refuelings entered manually and blended into consumption averages
- Encrypted HTTPS connections and bot-protected login
- Every manual edit or deletion recorded in a non-deletable backup log
- Data handling designed around privacy and integrity requirements
Permissions matched to responsibility.
- Admin
- Full control of the cloud account and every configuration option.
- Editor
- Operational manager. Cannot change panel passwords, create Admins, or create new installations.
- Viewer
- Can consult data and extract reports; cannot modify or delete anything.
- App
- Can only create or overwrite TAGs from the PC application or mobile app.
- API
- Available on request for data extraction into third-party management systems.
Built to keep your operation moving.
Ready to find the right Fuel Monitoring & Management solution for your operation?
Our team is here to help you configure the right system.
