TankCube

Compact. Secure.
Built to perform.

Compact bunded fuel storage engineered for fast siting and secure on-site refueling. Rugged double-wall construction with integrated dispensing in a stackable footprint. A dedicated aviation-rated variant — the D&O AvioCube — is available for Jet A-1 and aviation refueling applications.

  • Double-wall containment
  • Stackable design
  • Lockable & secure access
  • Built to certified standards
TankCube
Capacity Range
100 to 800 U.S. Gallons
Available Configurations
116, 253, 500, and 755 U.S. Gallon single-fuel units
Combination Units
456+32 and 672+66 U.S. Gallon Diesel/DEF
Construction
Double-wall steel, bunded
Built for reliability. Designed for versatility.

A smarter solution for fuel storage and dispensing.

TankCube packages storage, pumping, filtration, and dispensing inside a lockable steel cube. The bunded double-wall shell provides 110% secondary containment and the enclosed dispensing bay protects the pump, meter, and hose reel from weather and tampering.

The stackable cube footprint allows sites to scale capacity without expanding the ground plan, and the standardized lifting points support road, rail, and forklift handling.

  • Single-fuel sizes at 116, 253, 500, and 755 U.S. gallons
  • Combination diesel and DEF units at 456+32 and 672+66 U.S. gallons
  • Cube geometry — stackable to scale capacity in a fixed footprint
  • Bunded double-wall — 110% secondary containment built in
  • Lockable dispensing bay protects pumps, meters, and hoses
  • Forklift channels and lifting eyes for road and site handling
  • Optional RFID access control and telemetry
  • Rapid siting — no fixed foundation required for most installations

TankCube in the field.

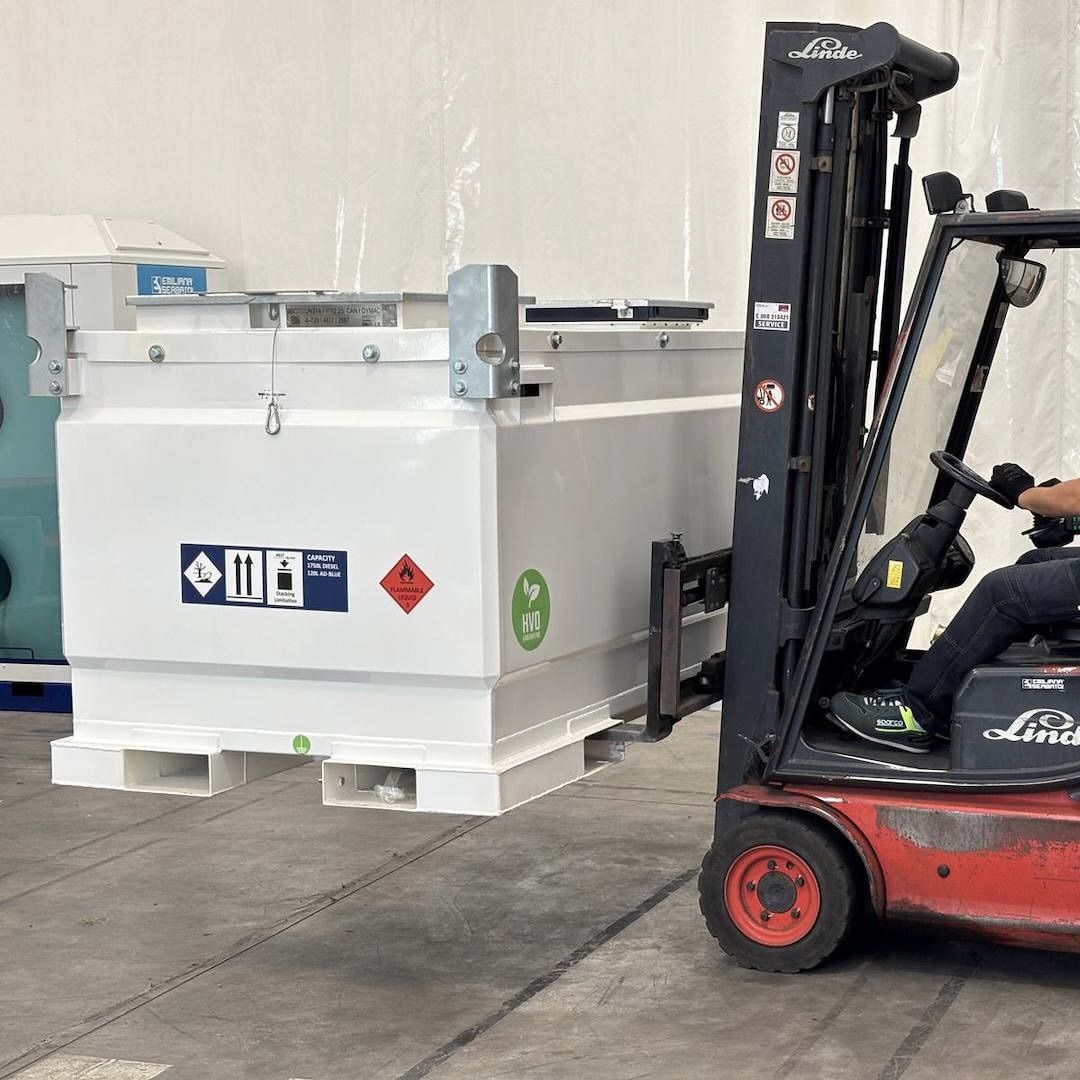

White TankCube being moved by forklift in a warehouse

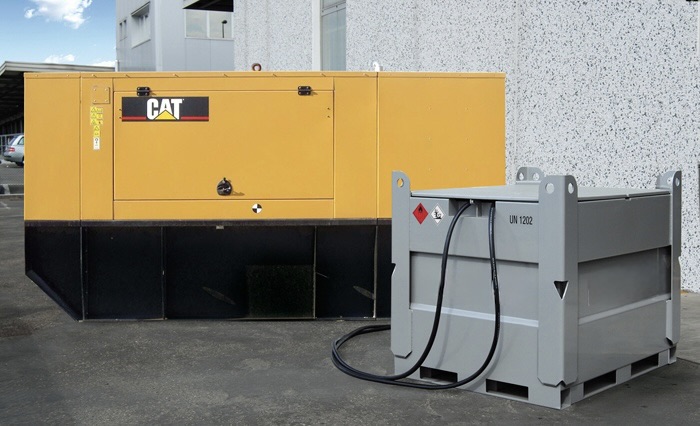

TankCube supplying fuel to a CAT standby generator

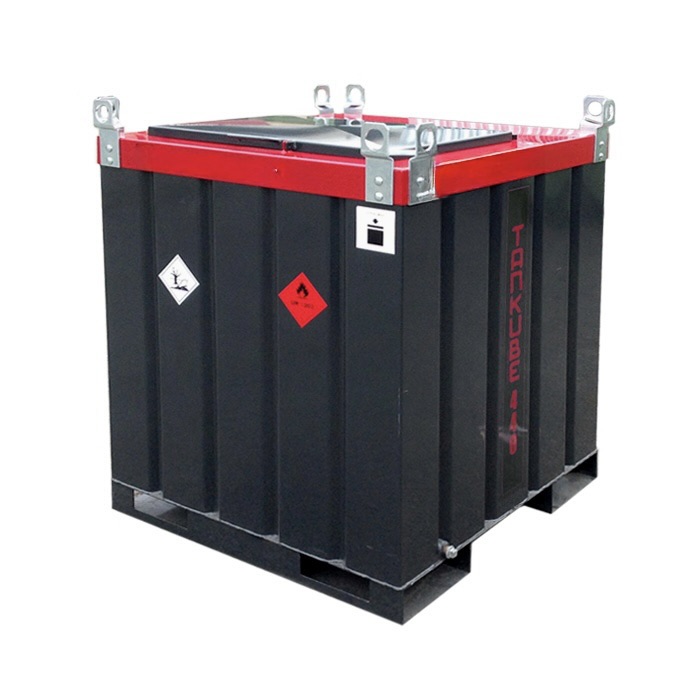

TankCube bunded fuel cube with lifting eyes and hazard placards

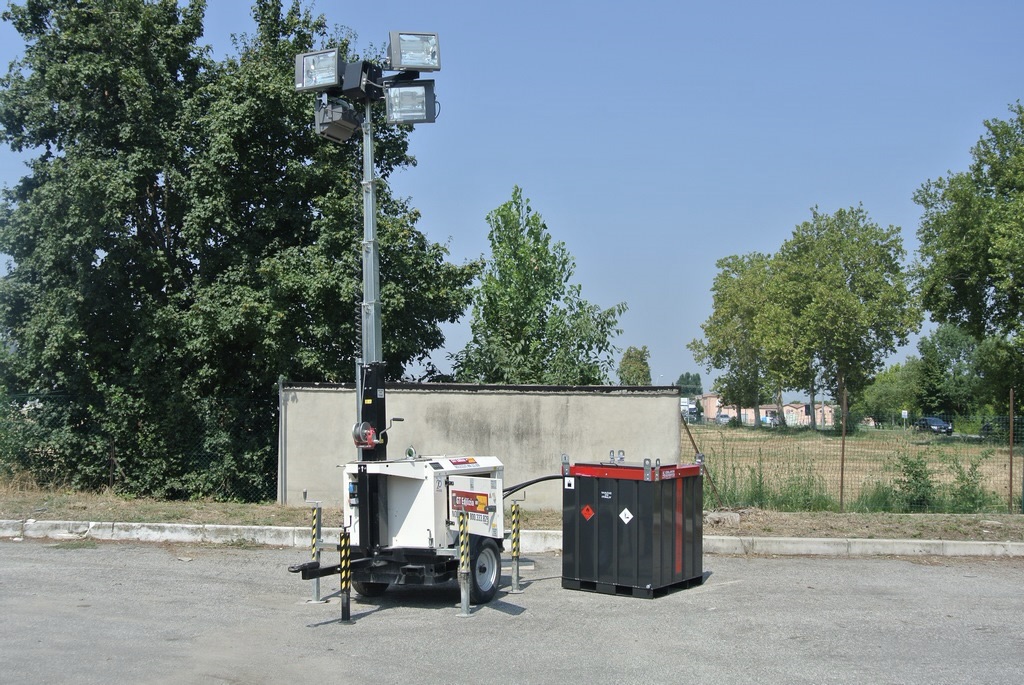

TankCube fueling a mobile light tower on site

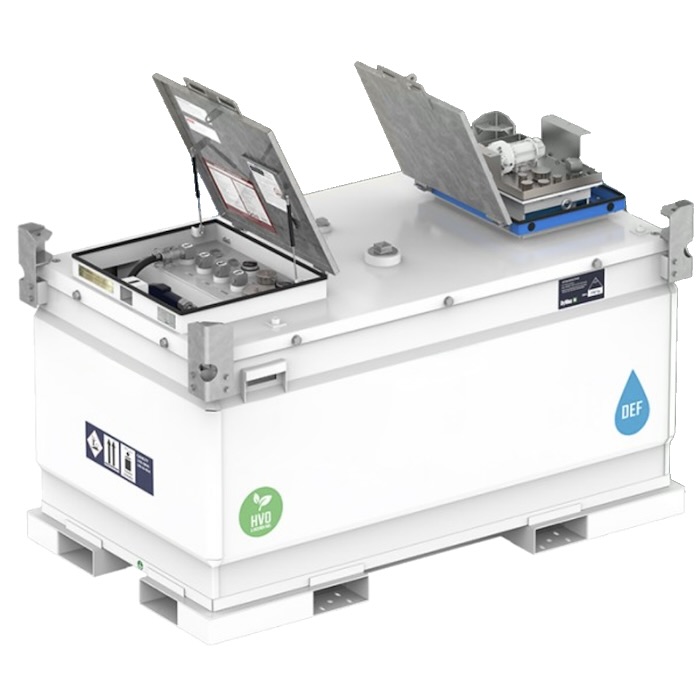

White TankCube with open dispensing and fill bays for DEF and HVO

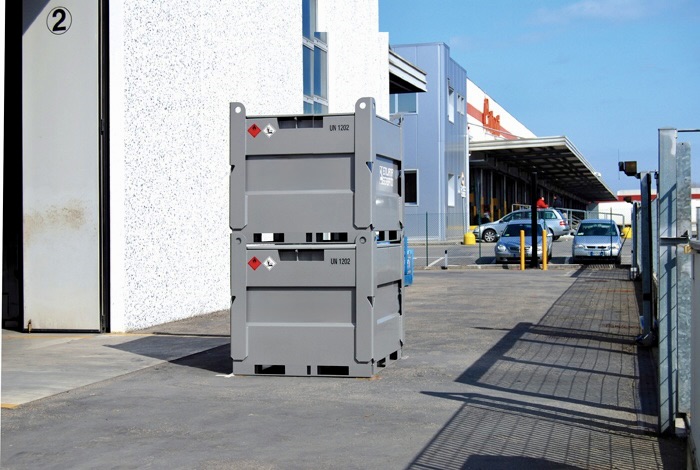

Stacked TankCube units sited outside a distribution facility
Product Overview

TankCube systems combine the strength of steel with smart engineering to deliver performance, safety, and longevity.

Every unit is factory-tested and ready for the field.

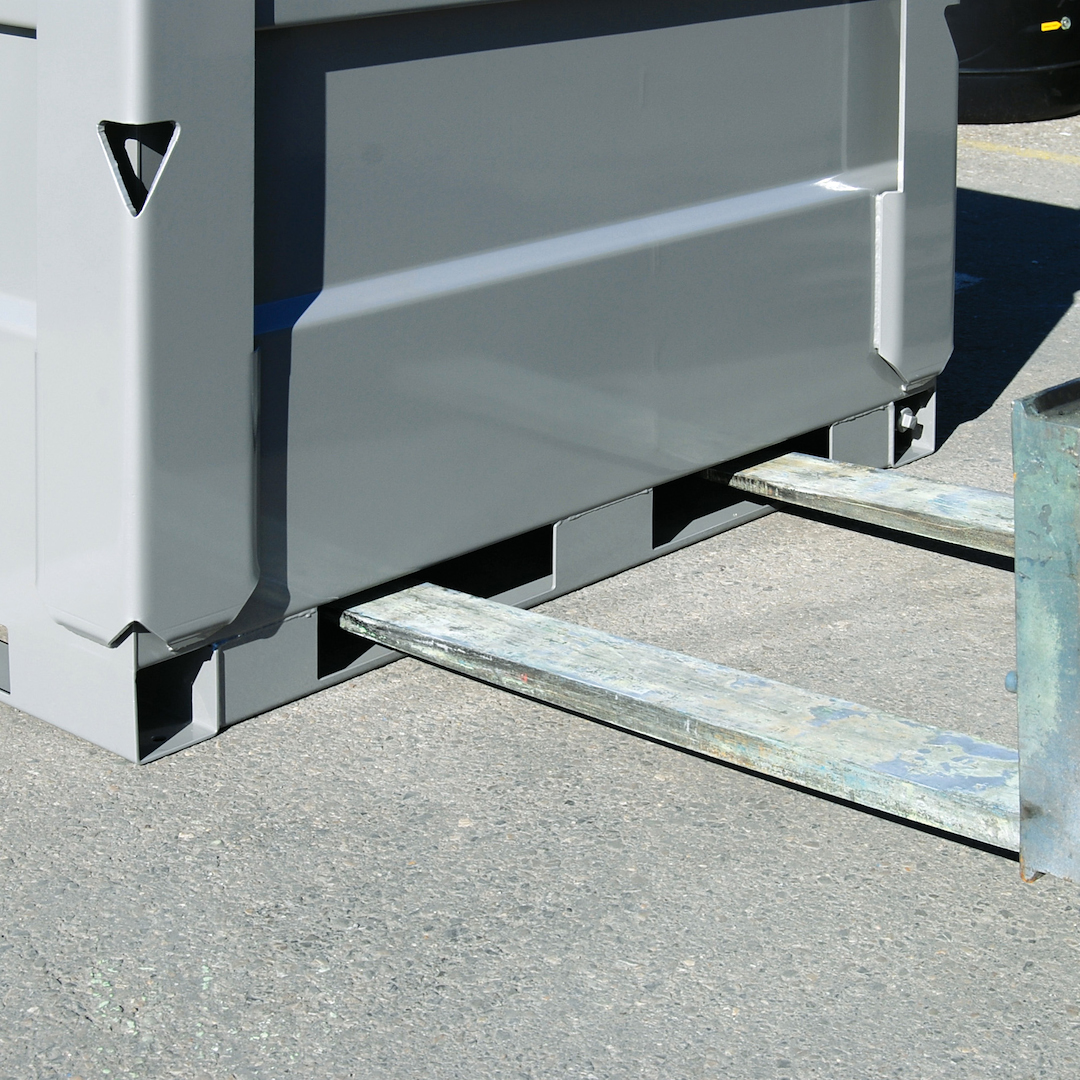

TankCube detail
Specifications
Capacity Range
100 to 800 U.S. Gallons
Available Configurations
116, 253, 500, and 755 U.S. Gallon single-fuel units
Combination Units
456+32 and 672+66 U.S. Gallon Diesel/DEF
Construction
Double-wall steel, bunded
Containment
110% secondary containment
Dispensing
Integrated pump, meter, filter, hose reel
Access
Lockable enclosure, key or RFID
Fuel Compatibility
Diesel, Gasoline, Jet A-1
Certifications
CE MarkingADRADNRIDIMDGUL-142UL/cULus Listed
Key Benefits

Built to keep your operation moving.

110% Bunded Containment
Double-wall steel shell holds 110% secondary containment, so a leak never reaches the ground.
Site It in Hours
Most installations need no fixed foundation — forklift channels and lifting eyes move the cube straight into service.
Stackable Footprint
Cube geometry stacks to scale from 100 up to 800 U.S. gallons without expanding the ground plan.
Metered, Controlled Fuel
Integrated pump, meter, and filter with lockable key or RFID access keep every gallon accounted for.
Single or Dual Fluid
116, 253, 500, and 755 gallon single-fuel units, or 456+32 and 672+66 diesel and DEF combinations — plus the Jet A-1 AvioCube.

Ready to find the right TankCube solution for your operation?

Our team is here to help you configure the right system.
